Electrostatic Charge Decay Meter with Powder Drawer

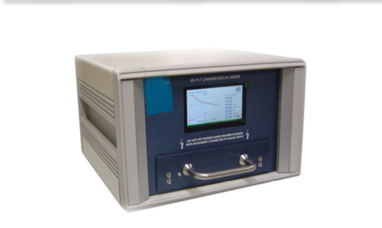

Electrostatic Charge Decay Meter with Powder Drawer
Product Description
Electrostatic Charge Decay Meter with Powder Drawer is designed for evaluating the antistatic and charge dissipative properties of materials, coatings, powders, and conductive additives. The system measures electrostatic charge decay time under controlled conditions, making it ideal for pharmaceutical, chemical, packaging, and process safety laboratories.
The integrated powder drawer enables direct testing of powders and particulate materials where conventional surface resistance measurements are difficult. Featuring a TFT touch-screen display, precision field-mill monitoring, programmable test voltages up to 5kV, and USB connectivity, the system delivers accurate and repeatable electrostatic performance analysis.
Key Features
- Electrostatic charge decay testing for solids and powders
- Measures antistatic and charge dissipative properties
- Powder testing capability with dedicated sample drawer
- Programmable voltage up to 5kV
- High-resolution TFT touch-screen display
- Precision field-mill charge monitoring
- USB connectivity for PC integration
- Compact and robust laboratory design
- Suitable for pharma, chemical, and packaging industries
- Designed for electrostatic safety and process hazard evaluation
Product Specifications
- echnical Specifications
- Parameter Specification
- Test Voltage 1kV – 5kV
- Electrode Diameter 81 mm
- Display TFT Touch Screen
- Charge Monitoring Field-mill Voltmeter
- Powder Sample Volume 65 cm³
- Powder Drawer Weight 2.65 kg
- Connectivity USB Interface
- Power Supply 220–240V AC / 100–115V AC
